WINCODE Technology specializes in the promotion of desktop label printers and barcodes in the field of automatic identification, and we strive to provide customers with only the best.
WINCODE offers a full range of marking solutions, and we believe that our high-quality and reliable products meet the requirements of our customers in various industries.
Offered desktop label printers:
A series (4" Standalone)
N series (4" Advanced)
C series (4" Economic)
2" Direct Thermal Series

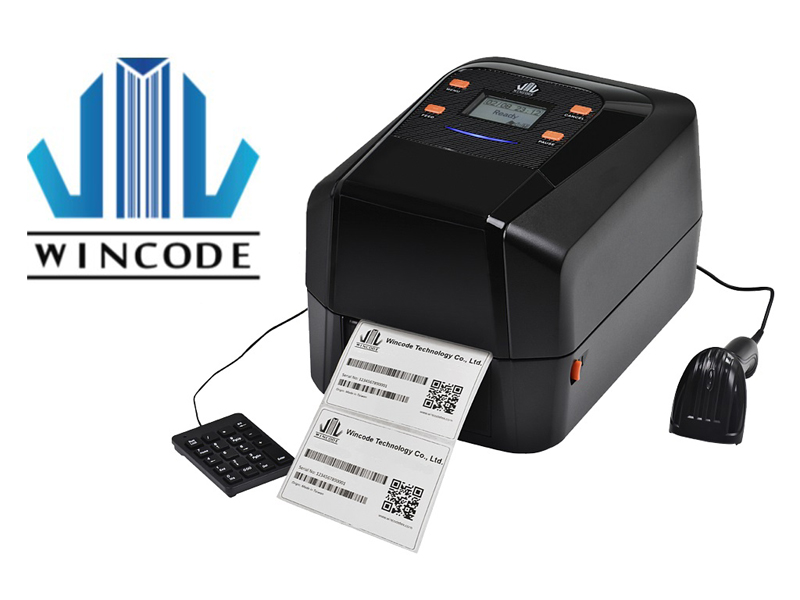

A series (4" Standalone)LP433E - High Print Quality, Best Choise (600 dpi)
Printer LP433E can support thermal transfer and direct thermal printing methods and safety open cover design to avoid hand clamping in operation. LP433E has 5" OD label loading capability and ribbon loading design (1" cores) to assist operator for easy loading. With 32 bit processor high efficiency configuration and multiple interfaces that can make printing job more smoothly and quickly; Free bundled label editing software as WinLabel, exclusive WPL printing language and firmware that are able to be emulated with other printer languages for simplifying printer replacement. With durability, reliability, and cost-effective strengths built in the LP433E so that LP433E is your optimal choice among in the market.
Software supports various of database connection (.dbf, .xls, .sql, .txt)
Free bundled labelling software WinLabel with friendly inferface
Cover closing safety design
3 mm label height support
Micro print at 600 dpi resolution
LP433E-TXC - The cost-effective desktop care label printer (300 dpi)
Printer LP433E-TXC represents a further development of the model LP433E, equipped with additional features.
Feature:
Cover closing buffer design to avoid clamping hand
Specification:
Resolution 300 dpi
Printing speed max 102mm (4")/sec
Print width max 101.6mm (4")
Print length max 2032mm (80")
Label width 15-110mm (0.59"-4.33")
Label roll capacity 127 mm (5") OD
Ribbon width 25.4-110mm (1"-4.3")
Communication USB 2.0, RS-232, Ethernet, Bluetooth (option)
LP423A - High performance model (200 dpi)
LP423A is the advanced model of LP423N, it not only has the same features of LP423N, but have LCD display with multiple languages supported. The built-in buzzer sound also reminds operator in noisy environment. The SD card slot can enlarge the memory storage up to 32GB. This model can be adopted in extensive applications such as manufacturing, retail, healthcare, government, office automation, warehouse management, asset management, logistics labels, and many many more.
Monochromatic 2.13” LCD display supports multiple language interface
Printing speed max 127mm(5”)/sec
200 dpi print head
External connectivity of a keyboard and a scanner together
SD card slot for expansible storage up to 32G
Dual ribbon loading design 25.4mm(1”)core and 12.7mm(0.5”)core
Screwdriver-free easy assembling cutter and peeler
Clamshell double-walled strong structure and cover closing buffer design
Precise printing position with self calibration system
Compatible with other printer command language e.g. ZPL, EPL, DPL, TSPL
Optional 802.11 b/g/n Wireless and Bluetooth module
LP433A - High performance, your best choice (300 dpi)
LP433A is the advanced model of LP433N, it not only has the same features of LP433N, but is equipped with LCD display with multiple languages supported. The built-in buzzer sound also reminds operator in noisy environment. The SD card slot can enlarge the memory storage up to 32GB.
Monochromatic 2.13” LCD display supports multiple language interface
Printing speed max 102mm(4”)/sec
300 dpi print head
External connectivity of a keyboard and a scanner together
SD card slot for expansible storage up to 32G
Dual ribbon loading design 25.4mm(1”)core and 12.7mm(0.5”)core
Screwdriver-free easy assembling cutter and peeler
Clamshell double-walled strong structure and cover closing buffer design
Precise printing position with self calibration system
Compatible with other printer command language e.g. ZPL, EPL, DPL, TSPL
Optional 802.11 b/g/n Wireless and Bluetooth module
N series (4" Advanced)LP423N - Cost-effective model and User-friendly operation interface
LP423N has high quality double-walled clamshell design, and 0.5” or 1” core dual ribbon loading design; 5” large label loading capacity; dual detection sensors to calibrate the label positons; Real time clock built-in and 8 LED indicators to make printer status more understanble.
Feature:
Multiple functional 8 LED indicators
Printing speed max 127mm(5”)/sec
Dual ribbon loading design 25.4mm(1”)core or 12.7mm(0.5”)core
200 dpi print head
Screwdriver-free easy assembling cutter and peeler
Clamshell double-walled strong structure and cover closing buffer design
Precise printing position with self calibration system
Compatible with other printer command language e.g. ZPL, EPL, DPL, TSPL
USB 2.0, RS-232 interface
Optional 802.11 b/g/n Wireless and Bluetooth module
LP433N - Cost-effective model, User-friendly operation interface
LP433N series is equipped with 300 DPI print head to make printing clearer no matter the printing information is graphics or texts. LP433N printer features double-walled clamshell design, 1”and 0.5” core dual ribbon loading design, and 5” OD large label loading capacity. LP4 series barcode printers contains dual detection sensors to calibrate label position precisely. A built-in real time clock and 8 LED indicators are effective to help operator better understand the printer status.
Feature:
Multiple functional 8 LED indicators
Printing speed max 102mm(4”)/sec
Dual ribbon loading design 25.4mm(1”)core or 12.7mm(0.5”)core
300 dpi print head
Screwdriver-free easy assembling cutter and peeler
Clamshell double-walled strong structure and cover closing buffer design
Precise printing position with self calibration system
Compatible with other printer command language e.g. ZPL, EPL, DPL, TSPL
USB 2.0, RS-232 interface
Optional 802.11 b/g/n Wireless and Bluetooth module
C series (4" Economic)
Label printers of the C34 series are the most cost-effective models of industrial thermal transfer printers and printers using direct thermal printing. Printers of the C34 series can not only print a label in text or graphic formats, but also have basic functions and user-friendly interface. Label printers of the C34 series can be used in various industries, such as retail, healthcare, manufacturing, logistics, and warehousing.
The bundled free label design program WinLabel provides completed label design tools and barcode resource for user to design ideal label format. WinLabel offers free database function to load in Microsoft Excel and Access, text file, and get required information in the specified position of label.
C342C Feature:
Thermal Transfer Printer
Long time 12HRs printing without overheat shutdown
Printing speed max 102 mm/sec
Large media loading space 127 mm OD
203 DPI print head
Screwdriver-free easy assembling cutter and peeler
Clamshell double-walled strong structure and cover closing buffer design
Precise printing position with self calibration system
Compatible with other printer command language e.g. ZPL, EPL, DPL, TSPL
USB 2.0 interface
2" Direct Thermal SeriesLP22DN - Desktop 2 inch-wide label printer
LP22DN direct thermal label printer has compact design, 5” OD large label loading capacity, clamshell open design and friendly operation interface that make user easy-to use. The LP22DN printer can be suited in the extensive applications such as retail, healthcare, product marking, document management, and entertainment. With high performance and cost-effective features, LP22DN is the optimal choice among 2” label printer market.
2 inch-wide thermal direct label printer
Printing speed max is 102mm(4”)/sec
200 DPI print head
Optional Wireless 802.11 b/g/n and Bluetooth models
5”OD label loading capacity
LP22DA - Desktop 2” mini label printer with advanced features
LP22DA model not only continues all features of LP22DN but builds LCD display with multiple language. The built-in buzzer can remind operator to track the printing job status. A microSD explanation slot can enlarge memory. LP22DA printer owns affordable price and outstanding functions to suit your needs and budget.
2 inch-wide thermal direct label printer
Provide BASIC commands for user programming
External keyboard and scan gun connectivity
SD card slot for expansible storage up to 32G
Printing speed max is 102mm(4”)/sec
Monochrome LCD with multiple language interface
Optional Wireless 802.11 b/g/n and Bluetooth modules
200 DPI print head
LP23DN - Desktop 2” mini label printer
LP23DN thermal direct label printer is equipped 300 DPI print head to make printing quality clearer in graphics and texts. It has compact construction, 5” OD large label loading capacity, clamshell open cover design, and friendly-use interfaces to allow user for ease-use. With the high printing quality, reliability and durability, LP23ND printer would be your best choice.
2 inch-wide thermal direct label printer
Printing speed max is 76mm(3”)/sec
300 DPI print head
Optional Wireless 802.11 b/g/n and Bluetooth models
5”OD label loading capacity
LP23DA - Desktop 2” mini label printer with high specification
LP23DA model not only continues all features of LP23DN but also builds a LCD display with multiple languages. The built-in buzzer can remind user to track printing job status. A microSD explanation slot can enlarge memory storage.
2 inch-wide thermal direct label printer
Provide BASIC commands for user programming
External keyboard and scan gun connectivity
SD card slot for expansible storage up to 32Gb
Printing speed max is 102mm(4”)/sec
300 DPI print head
Optional Wireless 802.11 b/g/n and Bluetooth models
Monochrome LCD with multiple language interface
If you are at a loss for choice please contact IN-MASH Company specialists.
