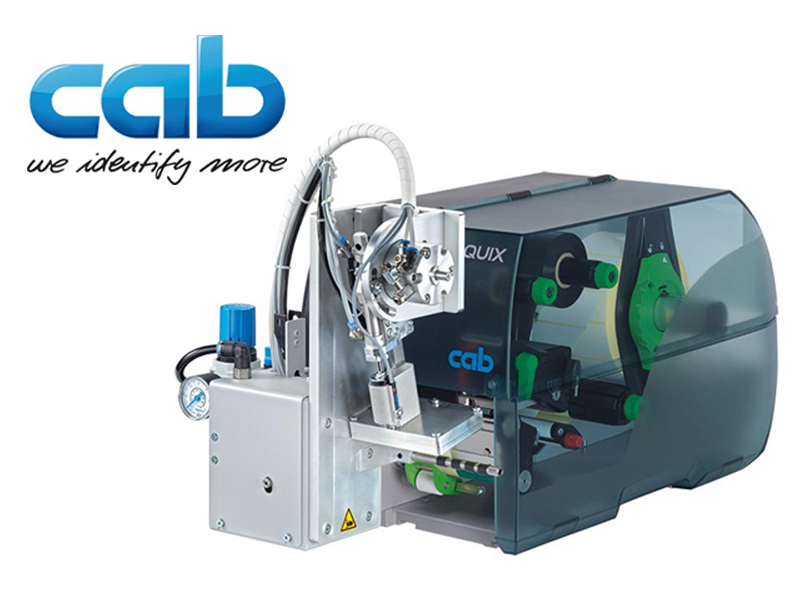

Applicator S1000 - Real-time labeling

S1000 applicator in combination with SQUIX series label printers is a cost-effective solution for all dispensing printers in semi-automatic operation or when vertically integrated in a production line. As in the SQUIX line, printheads are easily replaceable (they allow printing with a resolution of 200, 300 or 600 dpi). The label is placed on the product with a stroke cylinder.

The transfer of the label to the product can occur via three methods:

  • Stamp on - the label is applied to the resting product by the stamp on pad
  • Blow on - the blow on pad is moved into a predefined position of max 10mm from the product. The label is blown onto the moving or stationary product
  • Roll on - the label is moved from the printer along the pad to the roller. In the labeling position the label is pulled from the pad and rolled onto the moving product

 Applicator S1000-220 S1000-300 S1000-400
 Cylinder stroke mm 220 300 400
 Tamp stroke below device mm 64 144 244
 Compressed air bar 4,5

1. Long service life: The ball-bearing guides are low-wearing.
2. Flexible product heights: With the stroke cylinder labeling is possible at different heights. Different stroke lengths are available.
3. Compressed air regulation unit: Micro filters prevent from contamination. The compressed air regulator ensures a permanent high quality of labeling.
4. High process reliability: Supporting air jet stream, induction air and stroke speed are adjustable. For sensitive products and packaging the pressing force can be reduced to less than 10N (1kg). To avoid contamination, the vacuum holes are cleaned with air pressure after each labeling process.
5. Label sizes: Labels widths from 25 to 176 mm and heights from 25 to 200 mm can be processed.
6. Supporting air: Used for blowing the labels onto the pad.

To test the labeling process. Pushing the button causes the label to be printed and held by the pad. Pushing the button again starts the labeling process.


Applicator S3200 - Real-time labeling

The applicator S3200 combined with a SQUIX is a cost-effective solution for all dispensing printers in semi-automatic operation or when vertically integrated in a production line. With the S3200 printed labels are automatically applied on a product. By means of a rotary cylinder the label is positioned 45° to 90° to the horizontal and placed on the product with a short stroke cylinder.

Information on service life, pre-dispensing, compressed air regulation unit, process reliability and supporting air correspond with the applicator S1000.

 Applicator S3200
 Rotary cylinder 45° - 90°
 Stroke cylinder up to mm 30
 Immersion depth pad F up to mm 5
 Compressed air bar 4,5
 Cycle time approx.(*) 20 labels/min

(*) calculated with label height 40 mm, print speed 100 mm/s

Tamp pads or blow pads are manufactured according to the label size.

Tamp pad
A3200-1100 M3200-1100
 Material guide Left aligned Centered
 Tamp surface W x H min. mm 72 x 60
 Label width mm 20 - 116
 Label height mm 5 - 80
 Product surface Flat
 Product during labeling Not moving


Blow pad
A3200-1100 M3200-1100
 Material guide Left aligned Centered
 Tamp surface W x H min. mm 72 x 60
 Label width mm 20 - 116
 Label height mm 10 - 80
 Product surface Flat
 Product during labeling Not moving or in motion


Dispensing module S5104

For labeling on packaging on a conveyor belt. The product sensor identifies the labeling position. Dispensing is started and at the same time the next label is printed. Conveyor belt speed and print speed have to be synchronized. A reflective sensor monitors the positioning.

 Demand module S5104 S5106
 To be used with SQUIX 4.3, SQUIX 4 SQUIX 6.3
 Material guide Left-aligned
 Label width mm 25 - 116 50 - 176
 Label height mm 25 - 210
 Distance from print line
 to peel-off plate mm
336 - 518
 Product surface Flat
 Product height Fixed
 Product during labeling In motion, speed synchronized with the printer
 Cycle time approx.(*) 60 labels/min

(*) calculated with label height 100 mm, print speed 100 mm/s



For correct selection of the applicator please consult the specialists of the In-Mash Company.
